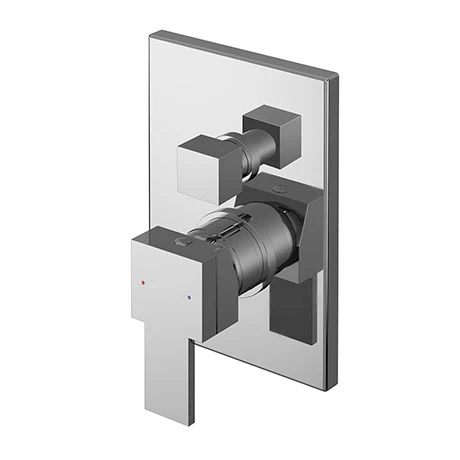

Nuie Sanford Manual Concealed Shower Valve With Diverter – SANMV12

Nuie Sanford Manual Concealed Shower Valve with Diverter – SANMV12

With sleek lines and modern angular design, the Sanford Manual Concealed Shower Valve with Diverter is the perfect upgrade for all contemporary bathrooms. This shower valve operates a bath filler with shower or a showering area with two outlets.

To use the secondary shower outlet pull the diverter knob out – this action will divert the flow of water. To return the water flow to the primary shower outlet position simply push the diverter knob back to its original position.

Product Details

• Brand: Nuie
• Product Code: SANMV12
• Height: 180mm
• Width: 115mm
• Depth: 110mm
• Finish: Chrome
• Material: Brass / ABS
• Valve/Cartridge Type: Single Lever Cartridge
• Pipe Size: 15 mm (1/2″ BSP)
• Concealed valve
• Water Outlet: 2
• Operating Pressure: 0.5 bar

All measurements are approximate

Flow Rates

0.1 Bar – 3.7 l/m
0.5 Bar – 8.4 l/m
1 Bar – 11.9 l/m
2 Bar – 16.9 l/m
3 Bar – 20.8 l/m
