Nuie Sanford Thermostatic Bottom Outlet Bar Valve – SAN503

Nuie Sanford Thermostatic Bottom Outlet Bar Valve – SAN503

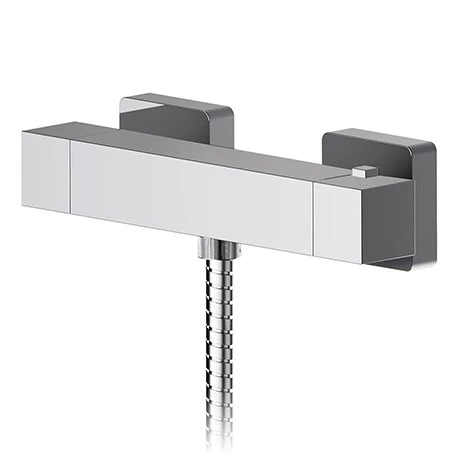

This stylish Nuie Sanford bar shower valve features modern sleek styling with a chrome finish and has been constructed from brass and ABS. It offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection. Pair the with a modern riser kit for a clean, and modern shower look.

Product Details

• Brand: Nuie
• Product Code: SAN503
• Height: 55mm
• Width: 275mm
• Depth: 72mm
• Finish: Chrome
• Material: Brass / ABS
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm (1/2″ BSP)
• Pipe Centres: 150mm
• Thermostatically controlled
• Exposed valve
• Bottom outlet
• Operating Pressure: 0.2 bar

All measurements are approximate

Flow Rates

0.1 Bar – 3.3 l/m
0.2 Bar – 4.7 l/m
0.5 Bar – 7.9 l/m
1 Bar – 11.3 l/m
2 Bar – 16.2 l/m
3 Bar – 19.8 l/m
